PMDG B737-600/700/800 STREAMDECK XL AND SD+ PROFILE (need LORBYs Axis And OHs SD plugin)

To run this you need to have AAOs plugin installed on your StreamDeck. Get it from here.
PLEASE ALSO READ THE AAO MANUAL/INSTALLATION INSTRUCTIONS ABOUT SETTING AUTOSCRIPTS AND EDITING THE PMDG ini FILE !!!

It is for the XL Version ONLY!

Features in this profile:

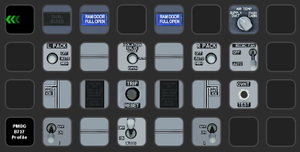

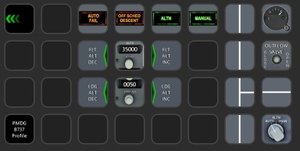

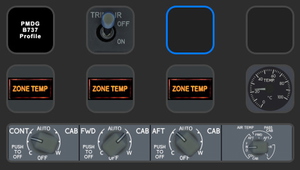

- AIRCOND Page

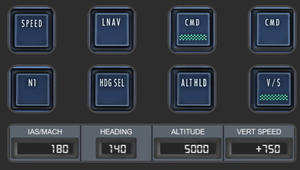

- AP Page

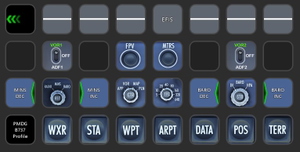

- EFIS Page
- ELEC Page
- ENGINE START page
- FLT CTRLS Page

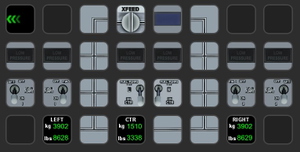

- FUEL Page

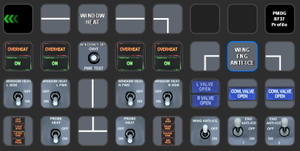

- HEAT and ANTI-ICE Page
- HGS Page

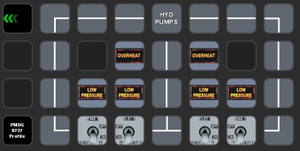

- HYDRAULICS Page

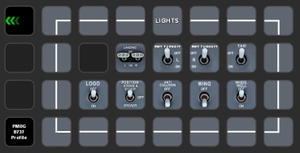

- LIGHTS Page

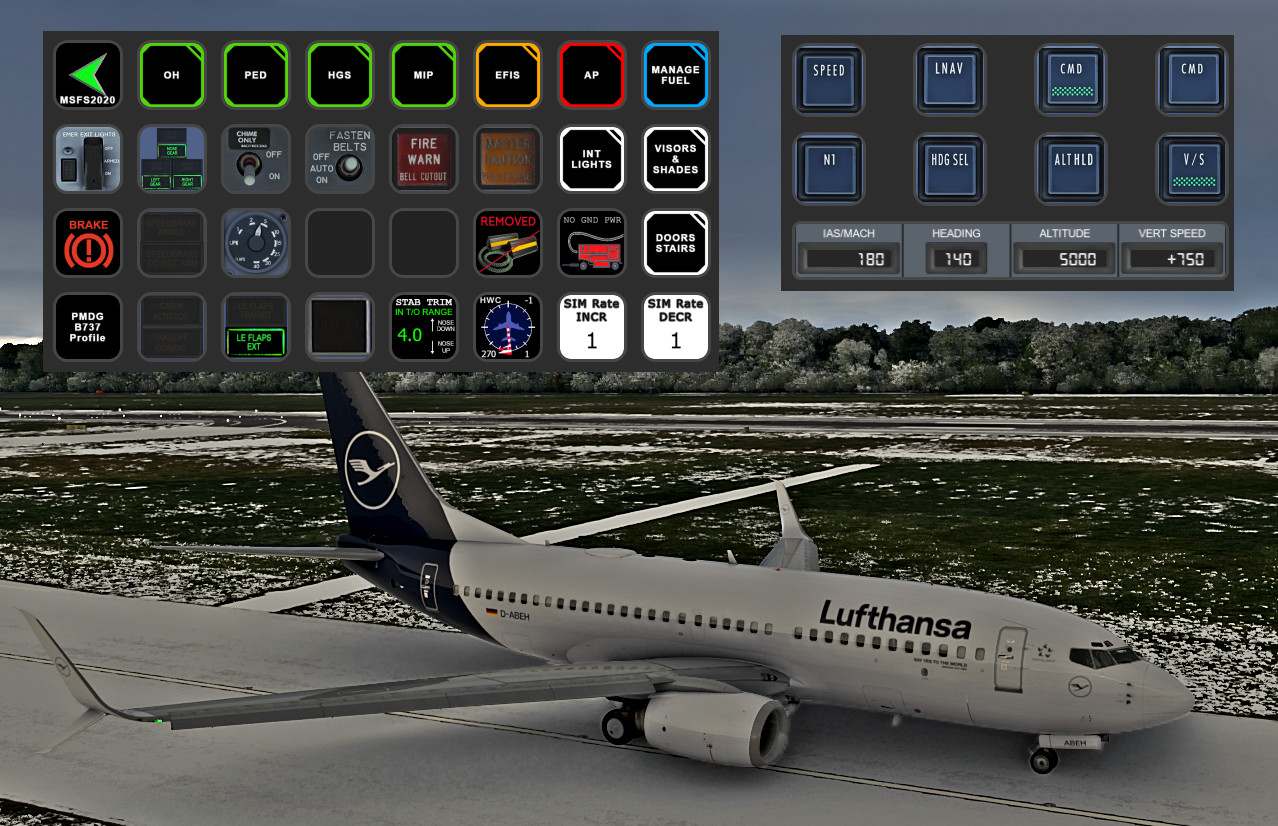

- MAIN Page

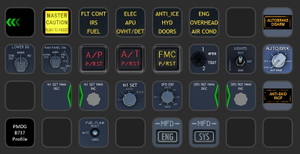

- OVERHEAD PANEL Page
- PEDESTAL Page
- TEST PANEL Page

and much more...

Tested and works with all the PMDG B737s (600-700-800). It might be possible that you have to adjust certain functions to your specific setup (especially views). If help is needed just drop a line in the comments.

TESTED WITH MSFS2024 ONLY MIGHT WORK WITH MSFS2020 TOO.

Installation:

First make sure that you have the latest AAO SD plugin installed properly.
Then just double click on the profile provided in this download to import into your SD software.

- B737.streamDeckProfile
- import B737 Scripts (B737scripts.xml) into your AAO software (make sure you DON'T have connection to FS when importing scripts - just click the green button). To have the external FMS (to use on external iPAD etc.) and some gauges working properly in AAO, assign PMDG-PMDG_737MSFS_CDU and PMDG-PMDG_737MSFS_DATA as an automated aircraft script (repeating with 100 ms) in AAO under Scripting (see also AAO manual PMDG section).
- also import Cameras.xml as there are new scripts used for Views.

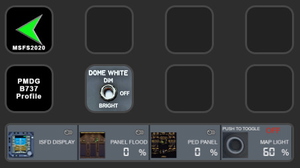

For the SD+ profile just double click on the "+" profile to get imported into your StreamDeck Plus. Just swipe on the display to reach the different pages and functions.

For further details regarding AAO refer to the manual.

Then you should be good to go.

This profile is still under construction and new functions will be added.

If you find some bugs, need some help or have some suggestions just let me know and drop a comment. Please also consider a donation as this is a very time consuming work and it will keep up the work for future updates! Thank you!
