Requires the excellent pack EDHK_Lights_and_Objects_Dev-Pack_1.0.8_by_MrMo

Thanks to him

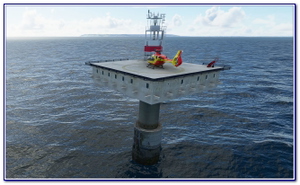

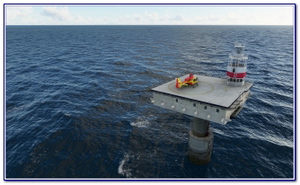

Location : In the world map type Royal Sovereign (50.723374 N, -0.435488 E)

------------------------------------------------------------------------------------------------------

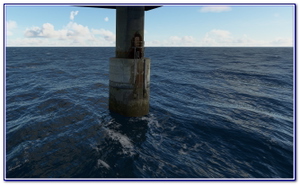

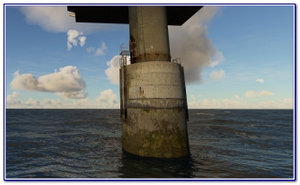

The lighthouse replaced a lightship that had marked the Royal Sovereign Shoal since 1875. The structure was built, in two parts, on Newhaven beach, and put into position in 1970. First, the base and attached column were floated out to the shoal, where the hollow base was flooded and allowed to sink into position. Then the cabin section and superstructure were floated out, positioned over the base and allowed to settle on to the column as the tide fell. Afterwards the telescopic inner section of the column was jacked up, increasing its height by 13 metres (43 ft).

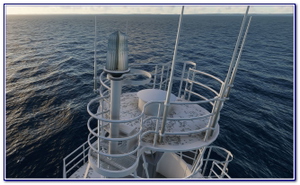

The lighthouse was brought into operation at noon on 6 September 1971, whereupon the lightship was towed away. Initially, the light source was a 1,000 watt bulb set within a revolving 3.5 order catadioptric optic, mounted in a superstructure on the corner of the platform. Beneath the lantern, on two intermediate levels, were the sounder, air tanks and associated equipment for the diaphone fog horn, below which the main control room was located (on platform-level). Power was provided by four 20 kW diesel generators, housed in the cabin section of the structure along with two diesel compressors (which, as well as supplying the fog horn, powered a crane on the platform). The optic completed one revolution per minute, thus displaying one flash every 20 seconds with a range of 28 nmi (52 km; 32 mi).

The light was automated in 1994. At the same time, the optic and lamp were replaced (reducing the range to 12 nmi (22 km; 14 mi)) and converted to solar-powered operation, and the fog horn replaced by an electric emitter. As of 2006 the light was controlled by a 475 MHz radio link to Trinity House managed by Vodafone; the platform was still occasionally occupied.

In June 2019, Trinity House announced that the lighthouse would be decommissioned, and then removed, because of the platform's structural condition. Beachy Head light, the "principal aid to navigation in the area", will be upgraded.

Link: Wikipedia - Trinity House

Many thanks to Rob and his team (Trinity House) for their collaboration

Many thanks to dom78180 for his library items

3D model, textures (20731 polygones): AlroCreation

Positioning, setting, environment, tests: michel78320 - Thanks you ;-)

To be continued ...

Alro
