MSFS Landing Inspector MSFS Landing Inspector is a tool for analyzing landings in Microsoft Flight Simulator 2020. It reads the airplane’s telemetry data via SimConnect and displays relevant information about your landing in a web browser. The MSFS Landing Inspector is free to use.

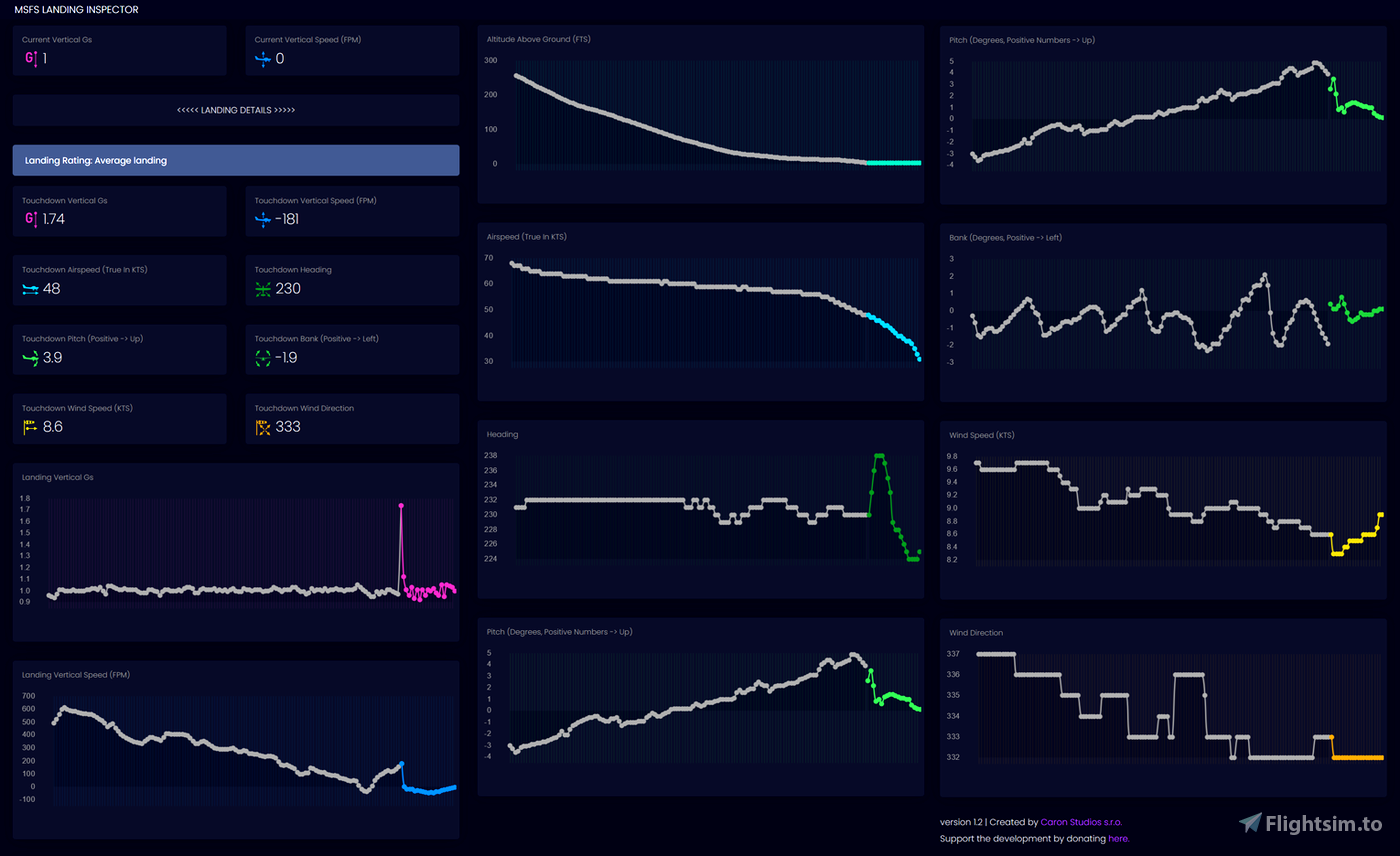

MSFS Landing Inspector displays the following data:

Current vertical G force
Current vertical speed
Touchdown G force
Touchdown vertical speed
Touchdown airspeed
Touchdown pitch, bank and heading
Touchdown wind speed and direction
Graph showing G forces during landing
Graph showing vertical speed during landing
Graph showing altitude above ground during landing
Graph showing airspeed during landing
Graph showing pitch, bank and heading during landing
Graph showing wind speed and direction during landing

1. Running MSFS Landing Inspector

Start a flight in Microsoft Flight Simulator. You have to start a flight first otherwise the tool may not work.
Launch MSFS Landing Inspector by running "MSFS Landing Inspector v1_2.exe". This should launch a Command Prompt window. Don't close this window.
Allow private network access in the Windows Security Alert Window.
Open your browser and load the site localhost:5000. This should load up the MSFS Landing Inspector in your browser.

2. Running MSFS Landing Inspector on Your Mobile Device

Make sure your PC and your mobile device are connected to the same local network and that your home network is set to Private in your Network Profile settings.
Run Command Prompt. Do this by pressing Win + R.
In the Command Prompt window type ipconfig and press Enter. Look for the line IPv4 Address and write down the IP address. In my case, it's 192.168.0.120. You will most likely have a different IP address. Close the Command Prompt window.
Start a flight in Microsoft Flight Simulator
Launch MSFS Landing Inspector by running "MSFS Landing Inspector v1_2.exe". This should launch a Command Prompt window. Don't close this window.
On your mobile device, load the following site in the browser: :5000. In my case, this would be 192.168.0.120:5000. MSFS Landing Inspector should now load on your mobile device.

3. Credits MSFS Landing Inspector uses the Python SimConnect library and the CSS theme Black Dashboard by Creative Tim for the web front-end.

4. GitHub You can follow the development of this tool on GitHub. MSFS Landing Inspector is written in Python.

5. Donation If you like this tool and would like to support the development, please consider donating here.

1.2

11.47 MB

4,478

142 75 90

This file has been scanned for viruses and is safe to download.

About

CaronStudios

18,710 | X Chief Captain

Compatibility	Sim Update 9 1 0
Category	Applications
Initial Release	October 08, 2020
Last Updated	October 08, 2020
Rating	4.5/5.0 — Superb!
Status	Not Downloaded yet

Version	Launched	Compatibility
Sim Update 9	Apr 26, 2022
Sim Update 8	Feb 28, 2022
Sim Update 7	Nov 18, 2021
Sim Update 6	Oct 19, 2021
Sim Update 5	Jul 27, 2021
Sim Update 4	May 26, 2021
Sim Update 3	Feb 25, 2021
World Update 3	Jan 28, 2021
Sim Update 2	Dec 23, 2020
World Update 2	Nov 25, 2020

😢

sad

😠

angry

😮

shocked

🙏

thankful

😂

amused

😍

in love

Permissions

Upload Permission
You are not allowed to upload this file to other sites under any circumstances.

Modification Permission
You must get permission from me first before you are allowed to modify or improve my file.

Conversion Permission
You are not allowed to convert this file under any circumstances.

Asset Use Permission
You must get permission from me first before you are allowed to use assets of my file.

© Caron Studios s.r.o. and Flightsim.to - All rights reserved. Any reupload or redistribution of this file without the author's prior written consent is forbidden. This Microsoft Flight Simulator add-on was created by Caron Studios s.r.o. and shared in Utilities » Applications for Microsoft Flight Simulator.

Dedicated Link Improve Report

20 Comments

coops

5 month(s) ago

Reply Copy Link

It's a really nice looking tool, but it consistently gives me very different results to other tools. I understand each tool can give different answers because they're sampling the data at slightly different times/rates. But MSFS Landing Inspector is really an outlier.

Landing challenge test #1

MSFS: -243

Sim Brief: -275

LRM: -289

Landing Inspector: -332

Landing challenge test #2

MSFS: -288

Sim Brief: -214

LRM: -225

Landing Inspector: -110

I'd love to see this tool fixed 😊

dresoccer4

5 month(s) ago

Reply Copy Link

been a looong time since any update on this. does it work in latest verasion?

venus

9 month(s) ago

Reply Copy Link

Hi there, i receive the following message: FileNotFoundError: Could not find module (path) simconnect.dllc (or one of its dependencies). Try using the full path with constructor syntax. The above expection was the direct cause of the following exception ... failed to load dynlib/dll . Most probably this dynlib/dll was not found when the application was frozen.

How can i fix this?

CaronStudios 9 month(s) ago

Have you tried my other app - the MSFS Mobile Companion App (https://flightsim.to/file/2828/msfs-mobile-companion-app)? It is based on a similar code.

I've seen users having similar issues with freshly installed Windows systems. Please try installing the vc_redist.x64.exe from https://support.microsoft.com/en-gb/help/2977003/the-latest-supported-visual-c-downloads

Let me know if this worked.

Btw, the MSFS Mobile Companion App will show you the three last vertical speeds at touchdown.

venus 9 month(s) ago

Thanks for your quick help, installing vc_redist.x64.exe did the job for me. I also installed the mobile companion app. Works brilliant!

CaronStudios 9 month(s) ago

Great! Happy to help!

texbook4

10 month(s) ago

Reply Copy Link

I love it. I wish it had top score and top score based on plane

JeanNoel1956

11 month(s) ago

Reply Copy Link

Hi,

Merci: Really interesting and very useful tools to improve landings. When do the curves start? (time or distance from touchdown?)

Jean Noel

CaronStudios 11 month(s) ago

Thanks! The time depends on your FPS to a certain degree. But it should be somewhere between 5 to 10 seconds before the first contact with the ground.

Biokerozen

1 year(s) ago

Reply Copy Link

Need feature to save our flights

matomot

1 year(s) ago

Reply Copy Link

Love your tool !!

But is there a way for me to change the port? Cause other apps are using :5000 already.

Limeeysauce 1 year(s) ago

Hi, this addon is a compiled python web-app, you can go to the github mentioned, download the source files, install python 3.8 (and add it to your path), install requirements and flask, and then edit the msfs_landing_inspector.py file, under the function "flask_thread_func" update the line to

app.run(host='0.0.0.0', port=5001, debug=False, use_reloader=False)

Or whatever port you choose. The git has instructions for installing python, flask, and requirements - it's very easy, but it does require using the command prompt.

Let me know if you have any problems with this, I'd be happy to help

Biokerozen

1 year(s) ago

Reply Copy Link

The tool is for now good to debrief the landing, but would be nice to have a popup appearing at touchdown to see the parameters (fpm, G, Heading,...)

jappyflies 1 year(s) ago

yep fully second that.

OddSobriquet

1 year(s) ago

Reply Copy Link

very nifty little tool. During the landing one is usually busy... well... landing. This little tool makes a detailled debrief possible and can really help you improve.

Only improvement I could suggest for now is a "connected; listening for landing" type of note so that the user knows it's working.

stamflyer

2 year(s) ago

Reply Copy Link

Just a suggestion: a measurement of the landing and take-off run length would make it complete.

MarcinML

2 year(s) ago

Reply Copy Link

I gotta say it is a great mod!. I just wonder what those color mean like for example Landing Gforce when it is in pink means that is smooth? does it change colors depends how smooth is landing? Thanks again for great work.

CaronStudios 2 year(s) ago

The colors don't change, they are fixed. This means that the color is no indication of the smoothness of your landing. Each different data set (G forces, vertical speed, winds, etc.) has its own fixed color that matches the icons.

Hope this clarifies your question.

Mauflo12961

2 year(s) ago

Reply Copy Link

Thank's for this great tool. I would donate you when you will make two things.
1st: If you touch a graph with the mouse it's just changing the graph. so it's hopping and you can't really analyse. So please calm this hopping graphs.
2nd: Is ist possible to save the landing's after touchdown? Maybe to give a Name before you start the recording?

And i have an other wish. There is no Blackbox in the moment. So i think with this base it should be easy to programm a "Black Box". Means you start the Black Box" give a name and save all technical Datas from your flight. If you make a crash, all datas are saved in this moment and you could analyze your crash. This would be great! Thanks again!

CaronStudios 2 year(s) ago

Thanks for the feedback! The issue with graphs popping is known and I'm working on a fix. As a workaround, I suggest you refresh the browser after every landing - this works for me at least.

Regarding the saving/export of the landing data: I've gotten a couple of requests, so I'm planning on implementing it in the future. Unfortunately, I can't give you any ETA as I'm doing this in my free time.

And thanks for the Black Box tip. I'll give it a thought.
