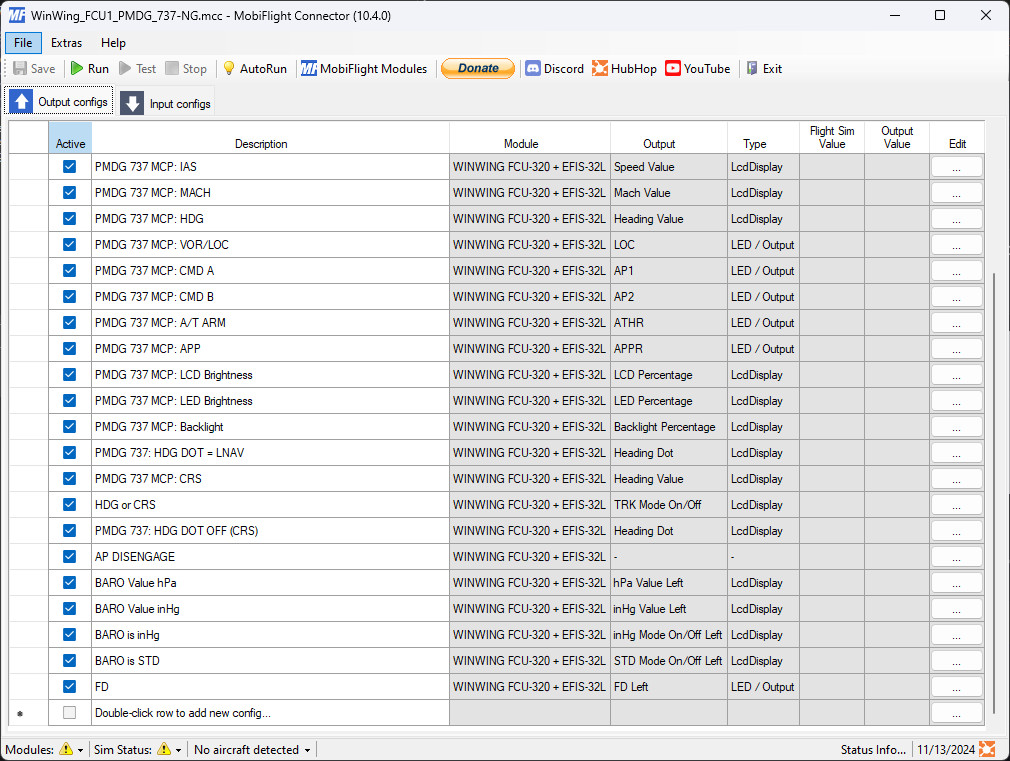

    PMDG 737NG | Winwing FCU+EFIS | Mobiflight Profile - Image 1

    Description

    Based on Dadriel's work

    Additions / Changes / Fixes over Dadriel's initial release linked above

    • Removed preconditons and adjusted Mach display and toggle so that it switches more reliably when expected
    • Backlight linked with the MCP panel brightness knob in the virtual cockpit, instead of the pedestal brightness, since it's the former that lights up the autopilot controls in the 737
    • Heading dot turns on with LNAV
    • Ability to change CPT & FO CRS (synced deltas) by switching between HDG & TRK mode using the middle button. Once in TRK mode, you're editing CRS for both sides using the Heading knob (and seeing the CPT CRS value in the Heading display). Press it again to switch back to HDG display and control.
    • PMDG fixed V/S not returning negative values through the LVAR in the 737NG series, so there's no need for the "registered FSUIPC required" output anymore
    • AP1 and AP2 will now cycle between ON -> Disengage On -> Disengage Off + A/P RST -> ON
    • A/THR will now cycle between Arm On -> Arm Off -> A/T P/RST Off -> Arm On
    • Support for EFIS L (EFIS L hardware not required)
    • Other minor adjustments I've forgotten

    EFIS L Support

    Known issues

    • Using the virtual cockpit's BARO STD toggle will make the EFIS profile's internal tracking of STD mode go out of sync; only use the EFIS to toggle BARO STD mode to avoid this issue

    INOP / Not Applicable

    • LS
    • CSTR
    • NDB
    • LEDs for WPT, VOR.D, ARPT

    Comments(28)

    Log in to join the discussion

    Log In

    22 days ago

    Works also with FS2024 thanks! Just QNH is not showing on the EFSI itself showing 0000

    3 months ago

    still not working in msfs2024? thank you for your work!!

    4 months ago

    Is there a way to make thos profile work in MSFS2024?

    5 months ago

    Is this profile works in 2024?

    5 months ago

    for me sadly no :(

    7 months ago

    Can I use this and make profile for right too and publish it and give you credit for left and fcu in description?

    10 months ago

    I am using the latest version (0.4.1) with the PMDG 737 in MSFS2020 and as soon as I run the profile in Mobi, the FCU's lights and displays start flickering non-stop. I tried adjusting the brightness in the virtual cockpit using all the knobs but that didn't fix it. Is there any solution?
    The FCU works fine with other aircraft. Thanks.

    about 1 year ago

    Is there a guide on how to get this to work? I've downloaded mobiflight beta, downloaded this profile, open mobiflight and open this file and hit run but nothing happens

    about 1 year ago

    Hello. Thank you for the profile. It worked perfectly. I tried to program the FDRight using your FDLeft profile but when I press the Left FD button, Right FD LED is lit but the Right FD button is not doing anything. Please advise. Thank you

    about 1 year ago

    Hello.
    MSFS 2020. I would have a problem with it that, in the case of the PMDG 737-900er, it jumps not once, but three times. Ex: speed: 100 to 103, altitude 10000 to 10300. All adjustable values ​​change like this.
    The PMDG 738 is excellent and works well, it only takes one step.

    about 1 year ago

    hey after download did you just add it to your community folder

    over 1 year ago

    Picture in MF:

    over 1 year ago

    Hello, I would like to use the profile without FSUIPC , but I dont understand how?
    This is how it looks for me right now:

    Thanks!

    over 1 year ago

    Hello, will your profile also work with PMDG 737-7?
    leftosAuthor

    over 1 year ago

    Yep, it should work fine.

    over 1 year ago

    Would you mind to add Right FD function?
    leftosAuthor

    over 1 year ago

    I don't have the right EFIS so I can't test it, but if you look at the left FD function in Mobiflight it should be pretty straightforward to change it to be on the right.

    over 1 year ago

    I have tried to copy your Left FD to new Right FD and changed the parameter. But, it doesn't work. Would you mind to advise any document online I can follow?
    MSFS 2020MSFS 2024

    PMDG 737NG | Winwing FCU+EFIS | Mobiflight Profile

    The PMDG 737NG Winwing FCU+EFIS Mobiflight Profile enhances the functionality of the PMDG 737NG aircraft in Microsoft Flight Simulator. This add-on incorporates various improvements over the original release, including more reliable Mach display toggling, adjustments to backlight controls, and enhanced functionality for heading and tracking modes. Additional support for EFIS L is provided, alongside fixes to autopilot controls and the visibility of vertical speed values. Known issues and non-applicable features are also outlined for user awareness.

    Downloads2K
    Version0.4.1
    File Size7.82 KB
    Published1 year ago
    Updated1 year ago

    More Information

    Simulator
    MSFS2020
    Rating0.0 (0)

    Version History

    - Add support for internally tracking a BARO STD mode toggle
