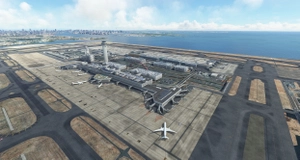

Enhance the Tokyo International Airport added in World Update 1.

Request
World Update 1 RJTT airport.

The DEM and aerial image data are from 2023, so they do not match the current situation.
The construction of the N apron is currently completed, but 941-945 is not available in this scenery.

About compatibility with 2024

Haneda Airport in 2024 does not include the same buildings as 2020, so it cannot be compatible with 2024.
The position of the boarding bridge has changed in 2024 Haneda Airport, which causes problems with the positional relationship with the parking spots.
The problem can only be solved by making the spots potision unrealistic, so there are no plans to create an enhanced scenery exclusively for 2024 at this time.
To use this extended scenery in MSFS24, copy asobo-airport-rjtt-tokyo-haneda from the official 2020 folder to the 2024 community folder.
Then rename the folder to something like 0-asobo-airport-rjtt-tokyo-haneda or change the priority so that it is loaded before this scenery.

Some of the added elements can be disabled.
You can disable them by renaming the target files in the “scenery” folder.

RJTT_GSE.bgl ----- Airport Equipment Ground Vehicles.
RJTT_Monorail.bgl ----- Monorail.

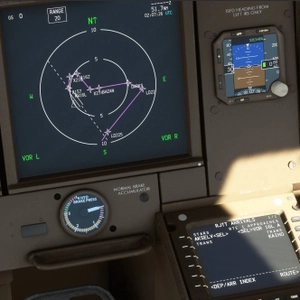

RJTT_Navdata_VORA.bgl ----- VOR A approaches.
RJTT_Navdata_JONAN.bgl ----- Already obsolete VOR C approaches and JONAN arrivals.
RJTT_TaxiwaySign.bgl ----- Taxiway sign.(If disabled, performance may improve.)
RJTT_VDGS.bgl ----- Simplified VDGS using LOD.(If disabled, performance may improve.)

incompatibility

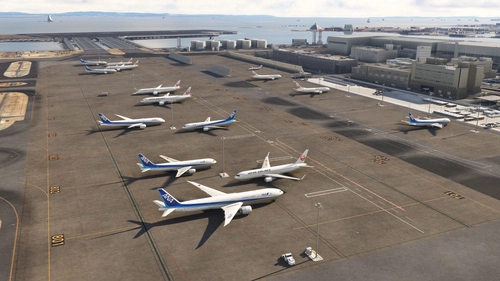

LVFR Airport Static Aircraft
Overwrites all elements except added objects to their initial state.
LVFR Deletes or renames rjtt-airport.bgl in Airport Static Aircraft.

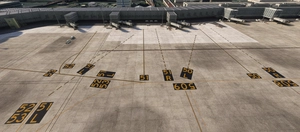

Specification of VDSG.
Since VDSG is an LOD-based specification, it depends on the viewpoint camera settings for each plane.
If InitialZoom = 0.36 in camera.cfg of each plane, the camera will stop just before the stop line.
For viewpoints that deviate significantly from the InitialZoom = 0.36 value, the stop position will also shift back and forth.

駐機スポットのエアラインコードはこちらのデータを参考させていただきました。ありがとうございます。
https://github.com/SEN-SEI-SAN/GSXAirportsSettingsJP/blob/work_test_01/LICENSE
