FENIX A32X for StreamDeck PLUS Profile by Tonyviation
LORBY's AxisAndOHs(AAO) is required to run this Profile.
This profile is designed by Tonyviation, featuring essential buttons and control switches needed for normal operation. The procedures are built on Normal Procedures.

This was created for fellow budget flight simmers who use the Stream Deck Plus as their sole device. I tested and modified the shared profiles. Guenseli's AAO script was a great help.

The Preflight and Engine Start-Up, as well as the Engine Shutdown processes, primarily require a mouse and keyboard for setup. Therefore, only the switches and buttons needed during actual flight (Hands-on Controller) are included (For example, switches like Anti-Collision Light, Logo Light, and most overhead panel switches are not included since they are not usually required during operations.)

Installation Instructions
Since the installation process is complex, please follow the steps carefully without skipping any.
If you ever used Guenseli's FENIX A3XX Profile, only need to install my SD+ Profile and Script.

• Import the AxisAndOhsScripts_FENIX_A3XX.xml file according to the AAO Manual.(Overwrite if it asks)
• Import the AxisAndOhsScripts_FENIX_A3XX_TONY_Vxx.xml file according to the AAO Manual. (Overwrite if it asks)
• Install the Stream Deck+ Profile : Double-click the StreamDeckProfile file to install the profile.
  (Ensure that your Stream Deck+ device is connected and updated to the latest version beforehand.)
• Enjoy your flight! ✈️

Developer's explanation
Each page can be navigated using buttons or by swiping left and right. (Order: EFIS - FCU - FWD - OVERHEAD - COM - CONF)

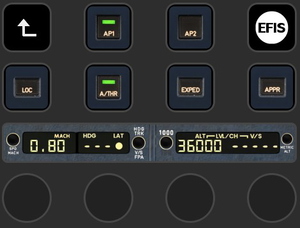

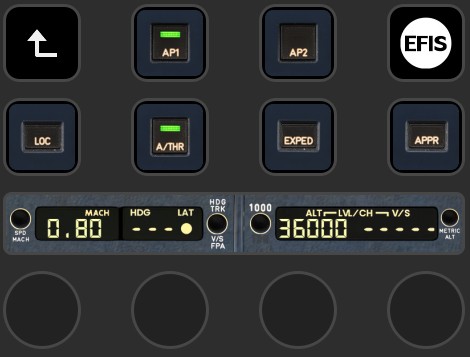

• FCU Page
  Short push on the knob: PUSH
  Long press (over 0.5 seconds): PULL
  You can toggle each function by touching the round buttons on the Stream Deck display.

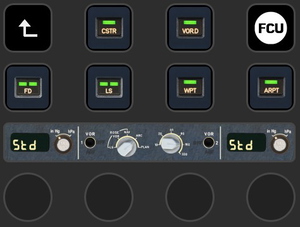

• EFIS Page
  You can toggle each function by touching the round buttons on the Stream Deck display.
  The FD and LS switches toggle the CAPT side with a short press, and the FO side with a long press (over 0.5 seconds).
  Switching between InHg and HPa can be done by touch.

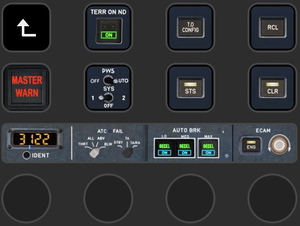

• FWD Page
  WX radar Switch : The PWS selection uses a short toggle, while the SYSTEM selection requires a long toggle (over 0.5 seconds).
  Touching IDENT button activates Ident function.
  Transponder selector can be swiched by pressing knob alternatively
  Autobrake Selector can be selected by rotating knob, push to toggle and ECAM knob is working as same.

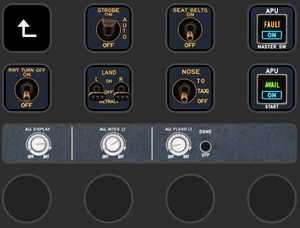

• OVERHEAD Page
  Due to MSFS limitations, wiper switches were excluded since wipers do not affect raindrops on the windshield or visibility.
  Touch DOME light to toggle

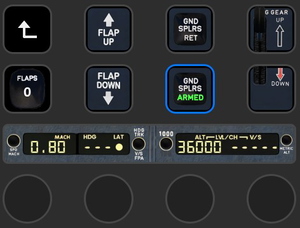

• CONFIG Page
  The config page allows you to set the flaps, landing gear, and speed brakes while controlling the FCU during the approach phase.
  Pressing and holding the FLAP UP switch fully retracts the flaps, while pressing and holding the DOWN switch sets the flaps to 40.

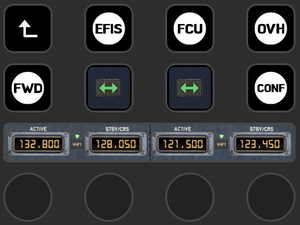

• COM Page
  This page is allows easy navigation to other pages

Known Bugs
There could be a delay when open a FWD page since it has lots of script depend on the system load
The standby frequencies are not synchronized with the Fenix display.
On the Stream Deck display, the Mach speed can exceed 1, but in Fenix it is displayed only up to 0.99. This is normal.

Update Notes
v1.0 Initial release
v1.1 MSFS2024 compatibility checked, image on VHF2 panel has been corrected.
v1.2 Updated for BFU(Big Fenix update), It does not work with earlier versions.

 you have any features you'd like to add or if you find any errors or bugs, please leave a comment. I will check and work on them as time allows
Your sincerely, Tony👨🏻‍✈️
